Glass configuration
Moving fan/fixed: 6+18Ar+6mm(4SG)
Matching fixed frame (fixed on both sides): 8+15Ar+8mm(4SG)
View design
Side frame: 124mm
Upper frame: 165mm
Fan frame: 29mm
Middle column: 174mm
Matching fixed frame view: 50mm
Lower frame outer view width: 24mm

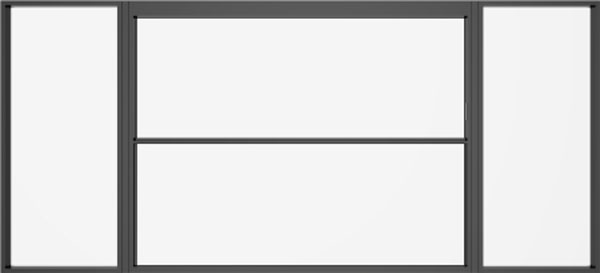

Opening frame
1/2 (half-width up and down opening)
Main material wall thickness
Frame: 3.0mm Fan: 2.5mm Handrail: 4.0mm
Process configuration
Seamless welding, overall spraying, lower frame corner filling
Hardware module
DEFANDOR GXW190iMech. components, integrated transmission module, fully autonomous transmission system
Function module
Emergency stop function, child lock function, interactive lighting, intelligent/manual control switching protection, fan falling function
(Moorgen Morgan four-key rotation/Armor intelligent terminal controller optional)
Electrical module
DEFANDOR CONTROL System, Central Control System: DEFANDORC.C.System 2.0
Control method
Glass touch screen
